SYP-IIH Hydraulic Pallet Truck
Modol: SYP-IIH Hydraulic Pallet Truck

Hydraulic pallet truck with built-in valve cleaning device

  • Small-volume welded oil pump, using a light handle with good texture and function, the steering wheel is lighter and the control is smoother;
  • Extremely strong light steel structure, easy to operate and high reliability;
  • Built-in automatic load check valve to prevent overloading during lifting;
  • Reliable oil-leakage-proof hydraulic system, the casing is mechanical hydraulic pressure;
  • Built-in valve cleaning device to keep the valve in normal condition.
  • Parameters

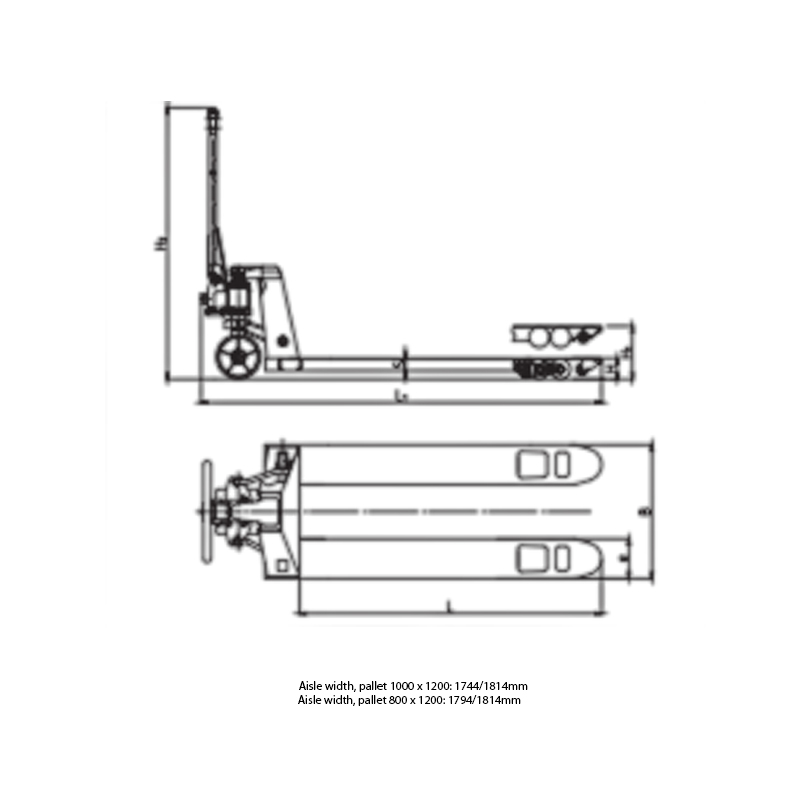

  • Assembly Diagram
  • Contact
  • Rated load

    Kg

    2000

    2000

    2500

    3000

    Minimum fork height

    H(mm)

    52/65

    75/85

    75/85

    75/85

    Maximum fork height after lifting

    H1(mm)

    140/160

    190/200

    190/200

    190/200

    Max. lifting stroke

    mm

    88/95

    ≥110

    ≥110

    ≥110

    Fork outside width

    B(mm)

    520/540/685

    520/540/685

    520/540/685

    520/540/685

    Inside fork width

    mm

    200/220/365

    200/220/365

    200/220/365

    200/220/365

    Fork working length

    L(mm)

    915/1100/1150/1220

    915/1100/1150/1220

    915/1100/1150/1220

    915/1100/1150/1220

    Single fork width

    e(mm)

    160

    160

    160

    160

    Fork thickness

    s(mm)

    37

    50

    50

    50

    Overall length

    L1(mm)

    1194-1614

    1194-1614

    1194-1614

    1194-1614

    Overall width

    mm

    520/540/685

    520/540/685

    520/540/685

    520/540/685

    Overall vehicle height

    H2(mm)

    1225

    1245

    1245

    1245

    Cylinder lift rod diameter

    mm

    Φ35

    Φ35

    Φ35

    Φ35

    Load-bearing single wheel size

    mm

    Φ50×93/Φ60×93

    Φ74×93/Φ80×93

    Φ74×93/Φ80×93

    Φ74×93/Φ80×93

    Load-bearing double wheel size

    mm

    Φ50×70/Φ64×70

    Φ74×70/Φ80×70

    Φ74×70/Φ80×70

    Φ74×70/Φ80×70

    Steering wheel size

    mm

    Φ160×50/Φ180×50

    Φ180×50

    Φ180×50

    Φ180×50

    Min. turning radius

    mm

    1120/1300/1350/1450

    1120/1300/1350/1450

    1120/1300/1350/1450

    1120/1300/1350/1450

    Wheel material



    PU/Nylon/Rubber

    PU/Nylon/Rubber

    PU/Nylon/Rubber

    PU/Nylon/Rubber

    Self-weight

    Kg

    62-74

    63-75

    68-81

    72-85

    *We reserve the right to change product design and specifications without prior notice.
