SDYG-Q Mini Semi Electric Stacker
Modol: SDYG-Q Mini Semi Electric Stacker

Mini Semi Electric Stacker

  • Lightweight body design, the door frame is made of imported high quality seamless tubes.
  • Maintenance-free battery, green and pollution-free, over-discharge protection, effectively extending battery life.
  • Explosion-proof valve effectively ensures the safety of goods and personnel.
  • Foot-operated brake, more convenient and easy to manipulate.
  • Customisable specifications: outer width and length of support legs; outer width and length of forks.
  • Optional: flat surface of fork pallet
  • Parameters

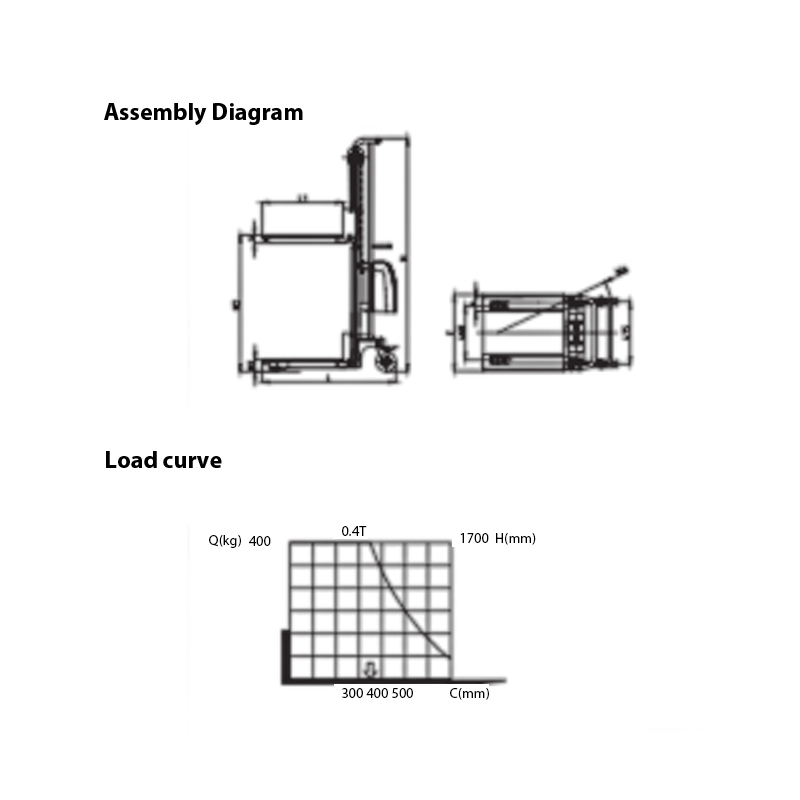

  • Assembly Diagram
  • Contact
  • Models



    SDYG-Q 0411

    SDYG-Q 0413

    SDYG-Q 0415



    Basic

    Rated load

    Q(Kg)

    400

    400

    400

    Load centre distance

    C(mm)

    350

    350

    350

    Lifting method



    Electric

    Electric

    Electric

    Operating mode



    Walking

    Walking

    Walking





    Wheels

    Material



    PU

    PU

    PU

    Steering wheels/weight bearing wheels Quantity



    2/2

    2/2

    2/2

    Wheel spacing

    mm

    789

    789

    789

    Load-bearing wheel size

    mm

    Φ75×42

    Φ75×42

    Φ75×42

    Steering wheel size

    mm

    Φ150×38

    Φ150×38

    Φ150×38











    Dimensions

    Minimum fork height from the ground

    H1(mm)

    90

    90

    90

    Maximum fork height after lifting

    H2(mm)

    1100

    1300

    1500

    Outside fork width

    mm

    550

    550

    550

    Inside fork width

    mm

    310

    310

    310

    Fork working length

    L1(mm)

    615

    615

    615

    One side fork size

    e/s(mm)

    120/60

    120/60

    120/60

    Overall vehicle length

    L(mm)

    1050

    1050

    1050

    Overall width

    E(mm)

    610

    610

    610

    Overall height

    H(mm)

    1370

    1570

    1770

    Platform plate size

    mm

    610×580

    610×580

    610×580

    Min. turning radius

    Wa(mm)

    1022

    1022

    1022

    Performance

    Max. lifting speed (full/no load)

    mm/s

    70/80

    70/80

    70/80

    Max. descent speed (full/no load)

    mm/s

    80/70

    80/70

    80/70

    Electrical

    Lifting motor

    Kw

    0.8

    0.8

    0.8

    Battery capacity

    V/Ah

    12/70

    12/70

    12/70

    Weight

    Battery weight

    Kg

    15

    15

    15

    Self weight

    Kg

    127

    129

    130

    *We reserve the right to change product design and specifications without prior notice.
